Flipping Cuckoo!



This has been a long hard journey but finally I have the internal mechanism of my flip cuckoo clock. Yep you heard me right a cuckoo clock that flips.

This madness started a short time ago when I inherited a piece of our family history. My Great Uncle Bill's cuckoo clock. It was in a sorry state of disrepair so I took it completely to pieces and started to spruce her up. It was a much bigger job than expected now I'm waiting for one small part to arrive and then I can finally put it all together.

In the meantime I've got myself a bit obsessed with cuckoo clocks. I remember standing watching Uncle Bill's clock and waiting for it to sing. Having it back in my life has brought back some happy childhood memories. It was a time before Playstation when a mechanical bird could keep a child amused for hours - literally.

Since I'd taken Uncle Bills clock to pieces I had a layout for the body of the clock but the inside was a different kettle of fish altogether. But then things started getting interesting. I thought why not take my clocks a bit left field. Why not combine a cuckoo clock with a flip clock?

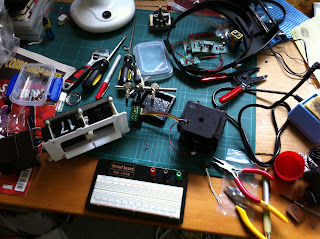

The first step was I needed to find a 70s style flip clock and strip it down.



Then I had to bash build a cuckoo mechanism that would work with the flip. Because the flip is electronic I had find electronic cuckoo bits to work with it.


This involved a lot of wiring, a lot of cursing and a lot of kiwi ingenuity. Now I want you look very carefully at this little dickens...


This is the trigger mechanism for the cuckoo. I had to find a way to make the flip clock trigger this. This little piece of metal and plastic caused me a lot of stress. I wreaked two flip clocks and several quartz movements to get this blasted thing to work. Finally with some superglue, a broken clock mechanism, a screw and a lot of blind luck I convinced this trigger and my cuckoo to make sweet, sweet love.

Here, for your viewing pleasure, is the working flip cuckoo...


video

I can't tell you the how much trial and error it took to get here but it was so worth it. Flippin' awesome!
